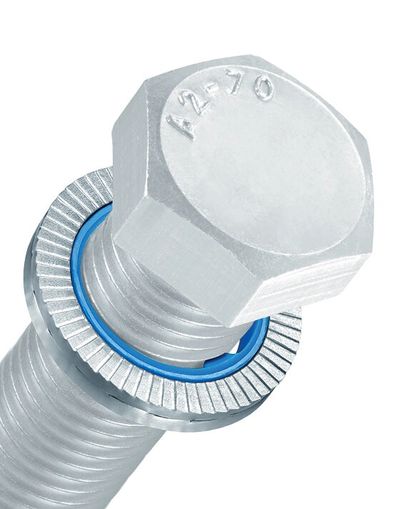

HEICO-LOCK® WEDGE LOCKING SYSTEMS



  • Certified system for securing bolts, working at low and high preload levels
  • Particularly suitable for dynamic loads – including when using lubricants
  • Can be re-used
  • Very easy to install and remove (wedge lock washers are supplied as a pre-assembled pair)
  • Also suitable for high-tensile bolts of 8.8, 10.9 and 12.9 and their respective nuts
  • Available in steel or stainless steel with narrow or wide bearing surfaces – other materials are available upon request

HEICO Wedgelocking Systems (pdf)

Download

HEICO-LOCK-Assembly-Instructions (pdf)

Download

HEICO-LOCK-HLK-Flyer-EN (pdf)

Download

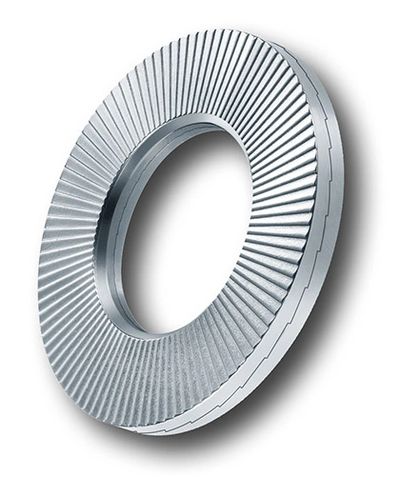

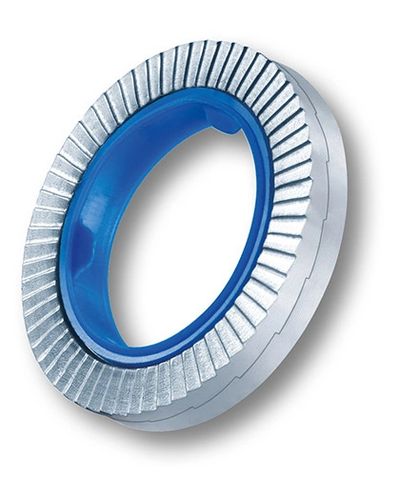

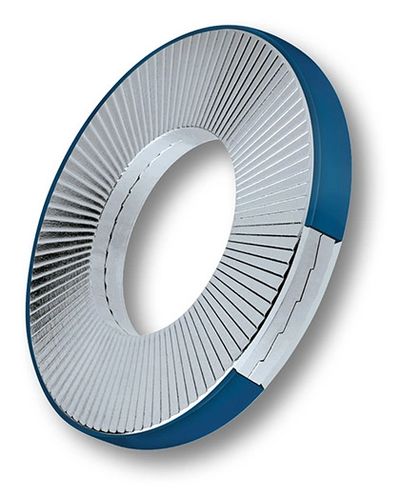

HEICO-LOCK® RING LOCK WASHERS



HEICO-LOCK® Ring Lock Washers provide high-quality, user-friendly bolt securing for the most demanding of applications and are ideal for repeated use.

The ring locking system guarantees that the two wedge lock washers are always fastened in the correct position with the wedge shaped cams on the inside and the radial teeth on the outside. This means that the bolt locking system is always easy, safe and quick to install, even for non-specialist users.

DESIGN OF THE RING LOCKING SYSTEM

HEICO-LOCK® Ring Lock Washers are supplied pre-assembled. The ring locking system consists of a polyamide ring (PA) and the already familiar HEICO-LOCK® Wedge Lock Washers.

  • Very easy to install and remove (ring locking system is supplied pre-assembled)
  • Whereas the HEICO-LOCK® Wedge Lock Washers secure the bolted connections reliably,
    the ring holds the two individual washers together in the correct position permanently
  • Particularly suitable for dynamic loads – including when lubricants are used
  • Also suitable for use with high-tensile bolts of 8.8, 10.9 and 12.9 and their respective nuts
  • Available from M4 – M24 - custom sizes upon request

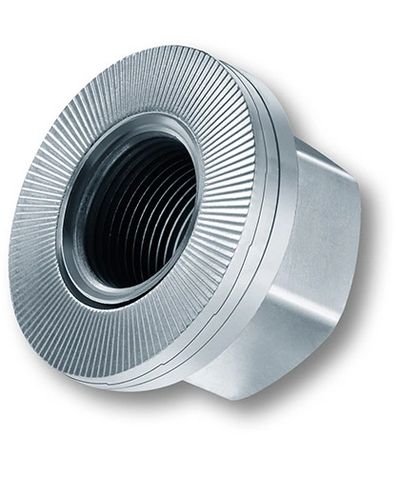

HEICO-LOCK® WEDGE LOCK NUTS



The HEICO-LOCK® Wedge Lock Nut is a re-usable one piece design that delivers high quality, user friendly bolt security without the need for seperate fasteners.

The captive and rotary combination of the nut and the original HEICO-LOCK® Wedge Lock Washers makes securing your bolted joints more efficient, effective and easier even under the most extreme vibrations and dynamic loads

  • The one piece design eliminates the risk of misuse
  • Minimized risk of operating and production breakdowns caused by faulty bolted connections
  • Easy handling especially in hard to reach locations
  • Fixed permanently in the correct position
  • Reduction of assembly time and effort
  • Reduced complexity of the component due to less individual parts
  • Easy, safe and fast installation even for non-specialist users
  • Can be re-used
  • Available from M6 – M27 in strength class 10
  • Also available with fine thread: M20x1.5 and M22x1.5

HEICO Wedgelock Nu (pdf)

Download

HEICO-LOCK® COMBI-WASHERS



The efficient combined securing system for highly loaded bolted connections

HEICO-LOCK® Combi-Washers enable quick and easy assembly, especially in difficult installation situations. Combine the simple to use HEICO-LOCK® Combi-Washers with all commercially available bolts provided by your suppliers, quickly and easily.

  • Easy mounting and permanent connection thanks to the inset tabs
  • Can be combined with all commercially available bolts
  • Also available in small purchase quantities
  • Flexible use for various different types of bolts
  • Permanent securing and correct positioning of HEICO-LOCK® Wedge Lock Washers
  • Can be re-used several times
  • Cost savings through increased productivity
  • Available in steel or stainless steel with narrower and wider contact areas
  • Available from M8 to M16
  • Can be supplied completely pre-assembled on request



Tailored precisely to your requirements


We supply HEICO-LOCK® Combi-Washers to meet your requirements. Fit HEICO-LOCK® Combi-Washers to your own existing bolts, quickly and easily. You can choose to carry out this step yourself or we can supply you with pre-assembled bolts ready to use.

HEICO-LOCK® Combi-Washers fit all commercially available bolts, giving you a decisive advantage as the combi product enables you to optimise your purchases through space-saving storage. Benefit from our short delivery times and attractive small purchase quantities too.

HEICO-LOCK® HLK-WASHERS FOR STEEL CONSTRUCTION



The HEICO-LOCK® HLK-Washers offer high quality anti-vibration security for HV sets according to DIN EN 14399-4 and DIN EN 14399-8.

Even under extremes of vibration or severe dynamic loads in steel construction the HEICO-LOCK® HLK-Washers, which are approved by the German Institute for Structural Engineering (DIBt), provide maximum reliability. Due to the increased under head radius of HV bolts, the HEICO-LOCK® HLK-Washers are chamfered on the internal diameter to ensure optimal surface contact while tightening.

  • Designed to secure HV sets according to DIN EN 14399-4 and DIN EN 14399-8
  • Replacing washers according to DIN EN 14399-6
  • Can be used for bolted connections of cat. A to E according to DIN EN 1993-1-8, a. o. suitable for slip-resistant connections
  • Certified construction product (certificate of conformity)
  • Approved for use by General Building Supervisory Authority (DIBt) Approval No Z-14.4-702
  • Approved for railway-specific applications (EBA approval)
  • Very easy to install and remove (HLK-washers are supplied as a pre-assembled pair)
  • The double chamfer also ensures that the HEICO-LOCK® HLK-Washers cannot be applied incorrectly, so avoiding operator error
  • High corrosion resistance provided by use of a zinc-flake coating
  • Available for HV sets from M12 up to M36

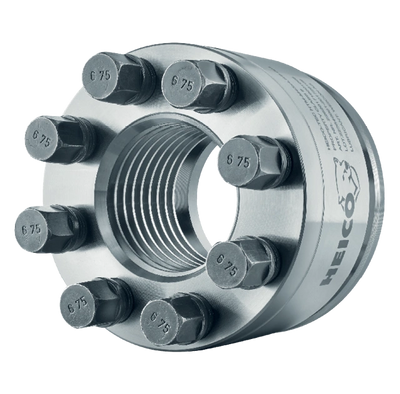

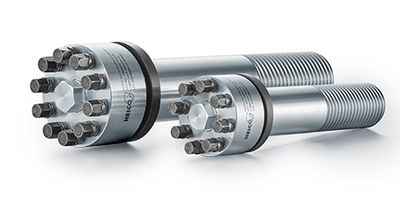

HEICO-TEC® TENSION NUT



For a secure joint with a HEICO-TEC® Tension Nut, no electric, hydraulic, or pneumatic tools are needed. All you need is a torque wrench.

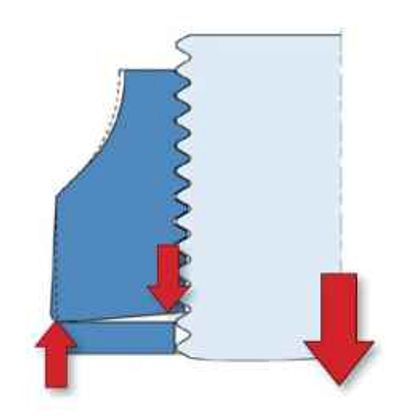

The HEICO-TEC® Tension Nut is unique in the fact that the pretension force of the large main thread is distributed to many smaller pressure bolts. Because the pressure bolts are smaller, a conventional torque wrench can be used to achieve the correct pretension force. This eliminates the need for complex, bulky, or heavy tools and makes securing large bolted joints more convenient and easy.

TENSION NUTS ACCORDING TO ISO 898-2

HEICO-TEC® Tension Nuts in strength class 8 and 10 meet all the requirements of ISO 898-2 which enables you to easily replace any hex nut from the same strength class while also offering all the advantages of a hand-tightened nut.

Our standard program of HEICO-TEC® Tension Nuts offers you the following advantages:

  • Fast delivery: On stock and therefore directly available
  • Compatible with DIN EN ISO 898-2: Direct replacement of hex nuts from the same strength class possible
  • Extended service through consultation as well as installation aids for technical documentation (e.g. assembly template)

Heico Tension Nut (pdf)

Download

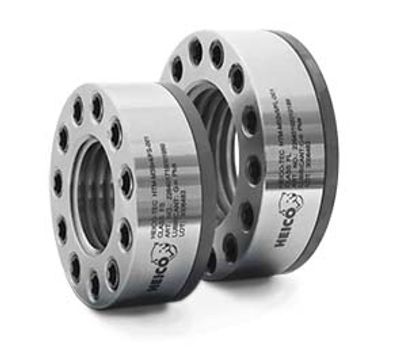

HEICO-TEC® COMPACT SERIES



The HEICO-TEC® Compact Series is mainly designed to be used in extraordinary confined spaces, as well in axial or radial direction, or if a comparably moderate preload level needs to be generated in relation to the classic, high-strength Tension Nut Series (Strength Class 8 and 10).

The aim is to realize the best out of the available space and the maximum preload force that can be achieved.

- The standard range of dimensions is M20 - M160
- Available in bare as well as zinc flake coated design
- Other dimensions, coating systems or materials are available on request

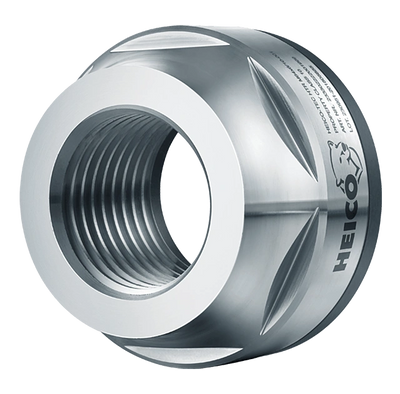

HEICO-TEC® REACTION NUTS



HEICO-TEC® Reaction Nuts are the ideal complement to the HEICO-TEC® Tension Nut for use with through-bolted connections.

If you already enjoy the advantages of HEICO-TEC® Tension Nuts for active pre-tensioning, you need an equivalent reactive nut on the opposite end. Due to their special shape, HEICO-TEC® Reaction Nuts can flex elastically. And the more elastic a bolted joint is, the more durable and secure it is against untightening and loosening.

ADVANTAGES OF THE HEICO-TEC® REACTION NUT:

  • Even load distribution through concave contact surface
  • Preload losses are effectively reduced
  • No additional space is required, tension nuts and reaction nuts have the same dimensions

COMPATIBLE WITH ISO 898-2

HEICO-TEC® Reaction Nuts meet all requirements of ISO 898-2. They therefore have the same strength as conventional hex nuts and can replace them 1:1. However, they must not be used for active pre-tensioning, rather only on the opposite reactive end.

CONSTRUCTION AND FUNCTION

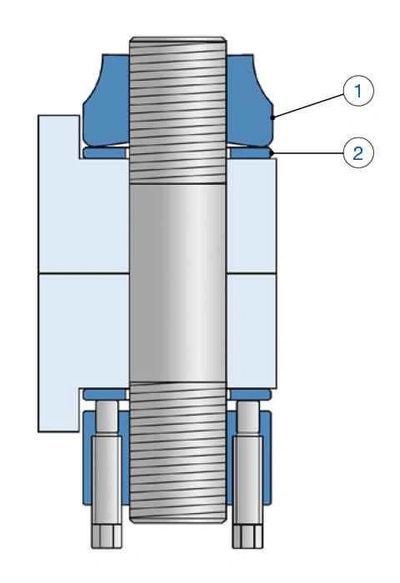

  1. The nut body (1) is screwed onto the bolt like a conventional nut with the main thread, but is not tightened. Tensioning is performed from the opposite end, e.g. with a HEICO-TEC® Tension Nut.

  2. Since the nut body only rests on the outer diameter, a hardened washer (2) protects the clamped parts from the contact pressure.

 The contact surface of the HEICO-TEC® Reaction Nut is concave and can therefore flex elastically in the direction of the bolt axis. This increases the elasticity of the bolted joint. A short bolted joint is susceptible to fatigue failure and self-loosening. With the HEICO-TEC® Reaction Nut the joint performs like a bolted joint which is 2-3 thread diameters longer and thus more durable and safer. This is accomplished solely by replacing the hex nut with a HEICO-TEC® Reaction Nut!

PRODUCT OVERVIEW HEICO-TEC® REACTION NUTS

HEICO Tec Reaction Nut (Inch) (pdf)

Download

HEICO Tec Reaction Nut (Metric) (pdf)

Download

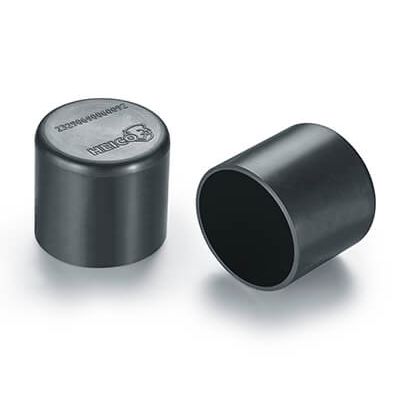

HEICO-TEC® PROTECTION CAPS



HEICO offers protection caps for all standard series HEICO-TEC® Tension Nuts.

The HEICO-TEC® Protection Caps, made of durable elastomer, protect the entire tension nut from external, aggressive influences during operation. In combination with coated HEICO-TEC® Tension Nuts, they are particularly suitable for use in highly corrosive environments, e.g. offshore.

The HEICO-TEC® Protection Caps are greased before assembly and then easily fit onto the tension nuts.

ADVANTAGES OF THE
HEICO-TEC® PROTECTION CAPS:

  • Water-repellent and additionally protects HEICO-TEC® Tension Nuts from corrosion
  • Protects against severe damage
  • Available to fit all products of the HEICO-TEC® Tension Nut standard series

We are happy to advise you in detail.
Please contact us for further information!

PRODUCT OVERVIEW HEICO-TEC® PROTECTION CAPS

HEICO-TEC_Protection-Caps-Product (pdf)

Download

HEICO-TEC_Protection-Caps-Class-10 (pdf)

Download

HEICO-TEC_Protection-Caps-_Inch (pdf)

Download

HEICO-TEC® TENSION BOLT



As with the other HEICO-TEC® mechanical tensioning products, the new HEICO-TEC® Tension Bolts are based on the same functional principle: taking a large bolted joint’s hard-to-manage main thread preload requirement and dividing it into many smaller, easier-to-manage force requirements.


The HEICO-TEC® Tension Bolt's key advantages are accuracy, simplicity, reliability and safety.  For example, a worker can tighten/loosen HEICO-TEC® Tension Bolts with simple hand tools instead of other costly and complicated tensioning methods.


HEICO-TEC® Tension Bolts are specifically designed for applications with tight spaces.  Compared to a conventional stud + hex nut bolted joint design, the solid, one-piece HEICO-TEC® Tension Bolt requires much less outside diameter and head height space allowances.  This one-piece design further simplifies operations and logistics in doing away with the traditional two-piece stud + nut arrangement.


As with the HEICO-TEC® Tension Nut, the HEICO-TEC® Tension Bolt creates torsion-free preloads in the main bolt avoiding the potential for thread damage.  Wherever customers face tight installation spaces or require a single, easy-to-install tensioning device, HEICO-TEC® Tension Bolts provide the best solution.


We can offer our HEICO-TEC® Tension Bolts in strength class 8.8 as a direct replacement for conventional bolts of the same strength class in the dimension range of M20-M100.  HEICO can also satisfy specific customer requests with imperial/inch sizes, unique designs, higher strength classes or other special requirements.
